Missions: a Sense / Organize / Act taxonomy

A mission is a team-level objective of a multi-agent system whose agents act on local information and coordinate through peer and environment interactions, from which system-level progress and constraint satisfaction emerge. Missions group by their dominant deliverable into three functional families — Sense, Organize, Act. The cut is embodiment-agnostic: it applies across aerial and ground robot swarms, underwater vehicle teams, planetary surface rovers, autonomous satellite formations, and teams of reasoning agents — whether they couple mechanically, communicatively, or by observation alone.

The three families Hardware anchors The ternary simplex Composites & strata Scope — the adversarial stratum Reconciling with the coupling taxonomy References

the three families

Three families, grouped by deliverable

The taxonomy classifies the deliverable — what the team is fundamentally producing — not the platform, the sensors, or the coupling modality. Each family draws on its own established line of work.

(I) Information Gathering — Sense

Build and maintain a shared picture. The team's deliverable is shared knowledge of an environment, system, or set of targets; progress is team-level uncertainty reduction.

Canonical example — shared exploration: a team reduces uncertainty over an unknown region within a time budget; global progress depends on how local observations propagate through inter-agent interaction. The family rests on active perception and its later extensions to distributed and multi-robot sensing.

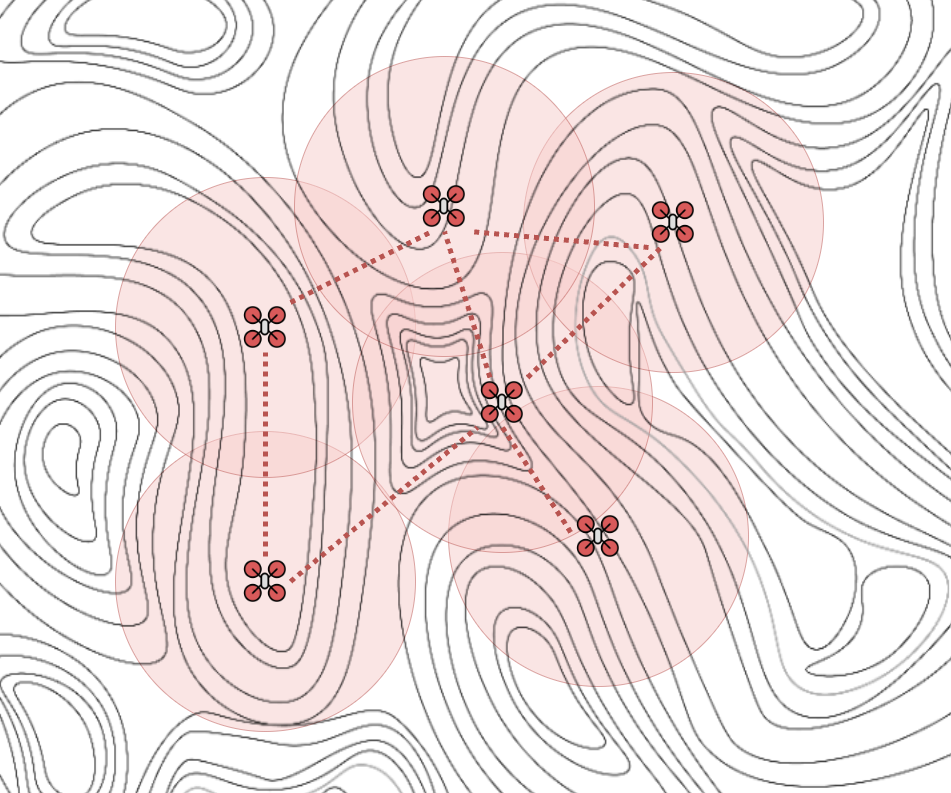

Drones with sensing footprints reducing uncertainty over a contour map — **(I) Sense** — shared exploration: agents reducing uncertainty via overlapping sensing footprints over an unknown region.

(II) Collective Organization — Organize

Form and hold structure & connectivity. The team's deliverable is its own relational state: a target configuration — communication topology, spatial geometry, value agreement, or spatial distribution — produced and sustained as conditions change.

Canonical examples: holding a relay backbone, maintaining a formation, reaching consensus on a value, covering an area. The family rests on graph-theoretic cooperative control, treating consensus, formation, and connectivity as properties of the interaction graph between agents.

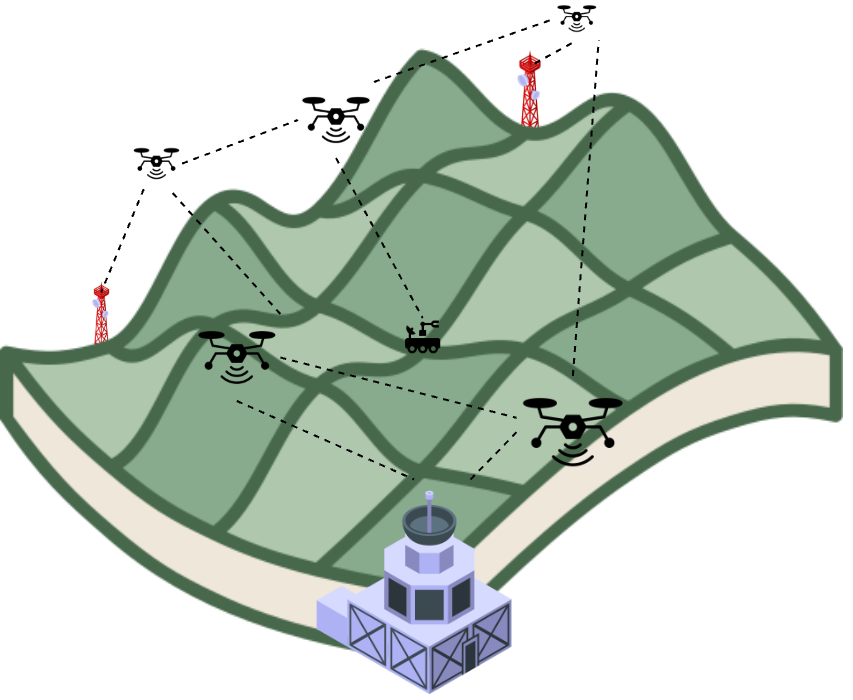

Terrain with a maintained communication graph across heterogeneous agents — **(II) Organize** — formation and consensus over a maintained interaction graph across heterogeneous agents.

(III) Action and Intervention — Act

Effect change on the world. The team's deliverable is an effect on the world or on a downstream system, produced through coordinated action and a division of work across agents — coupled by shared constraints: capacity, energy, conflicts in shared workspace or shared state, and safety.

Canonical example — precision agriculture: spraying or seeding allocated across a large area within strict resource and safety limits. The family comes out of multi-robot task allocation and the swarm-robotics demonstrations built on it.

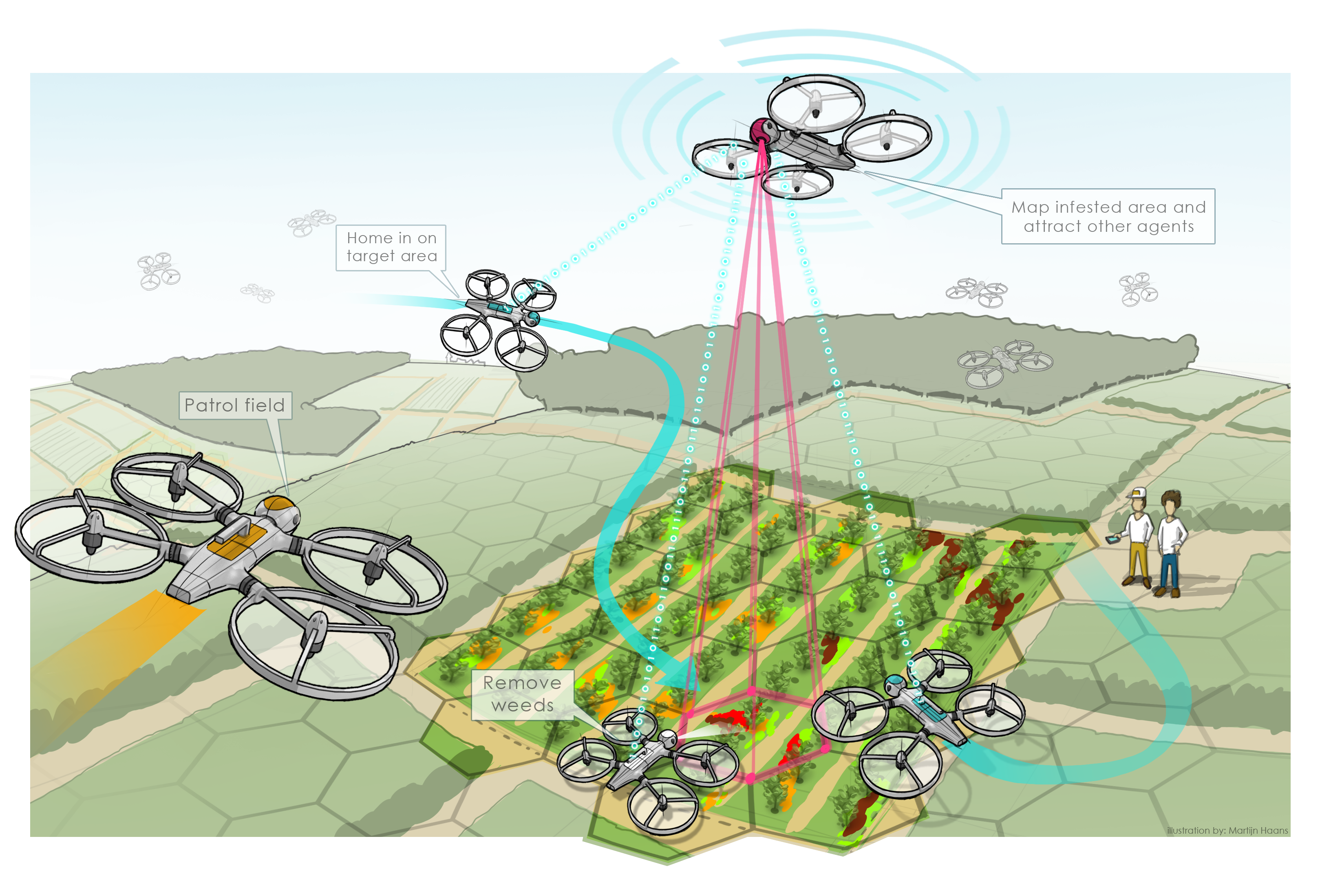

SAGA precision-agriculture swarm allocating tasks across a field — **(III) Act** — the SAGA precision-agriculture swarm allocating patrol, mapping, and weed-removal tasks across a field.

hardware anchors

Hardware anchors

Real program-scale deployments set the agenda. Four representative systems, shown as photographs, anchor the families to flown and fielded hardware.

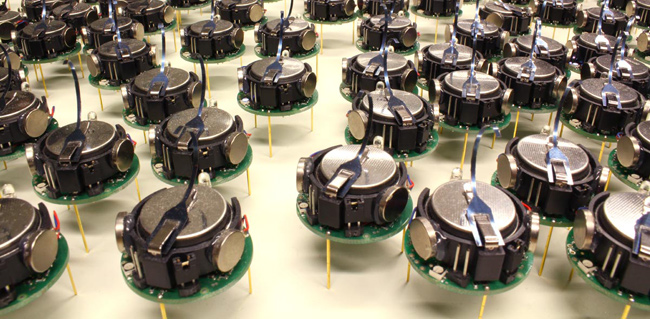

Kilobot thousand-robot swarm — **Kilobot** — programmable self-assembly in a thousand-robot swarm (Organize-dominant).

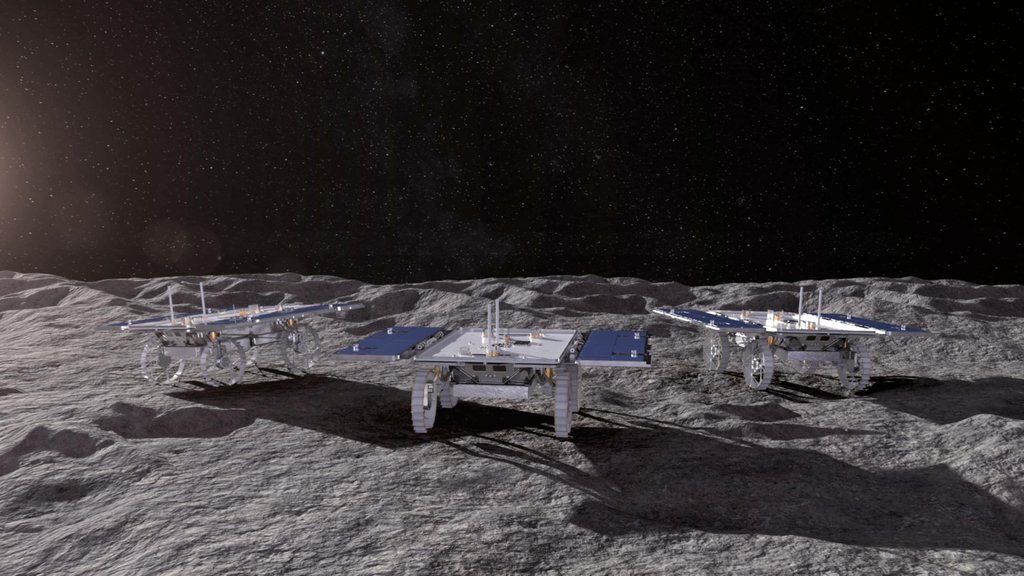

NASA CADRE lunar rover team — **NASA CADRE** — Cooperative Autonomous Distributed Robotic Exploration, a lunar rover team (Organize over Sense).

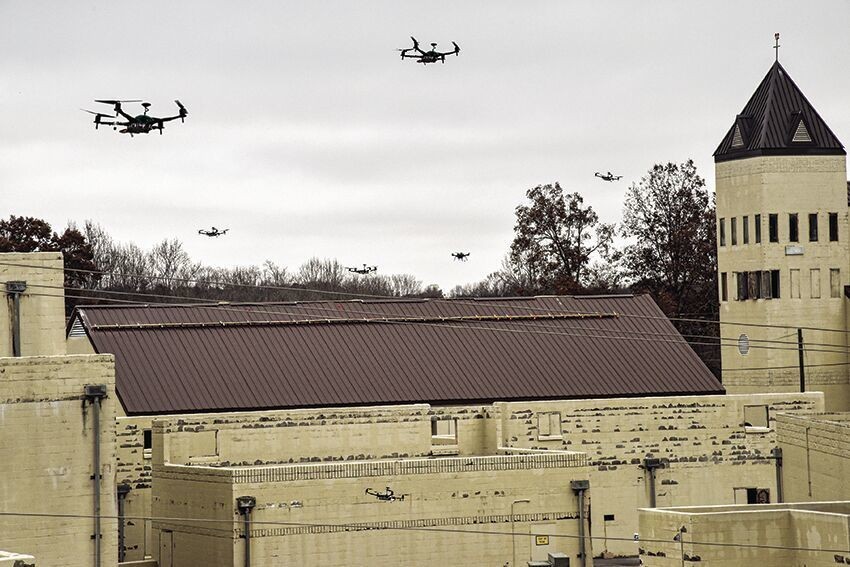

DARPA OFFSET aerial-ground tactical swarm — **DARPA OFFSET** — OFFensive Swarm-Enabled Tactics, an aerial-ground tactical swarm (composite, blending Sense and Act).

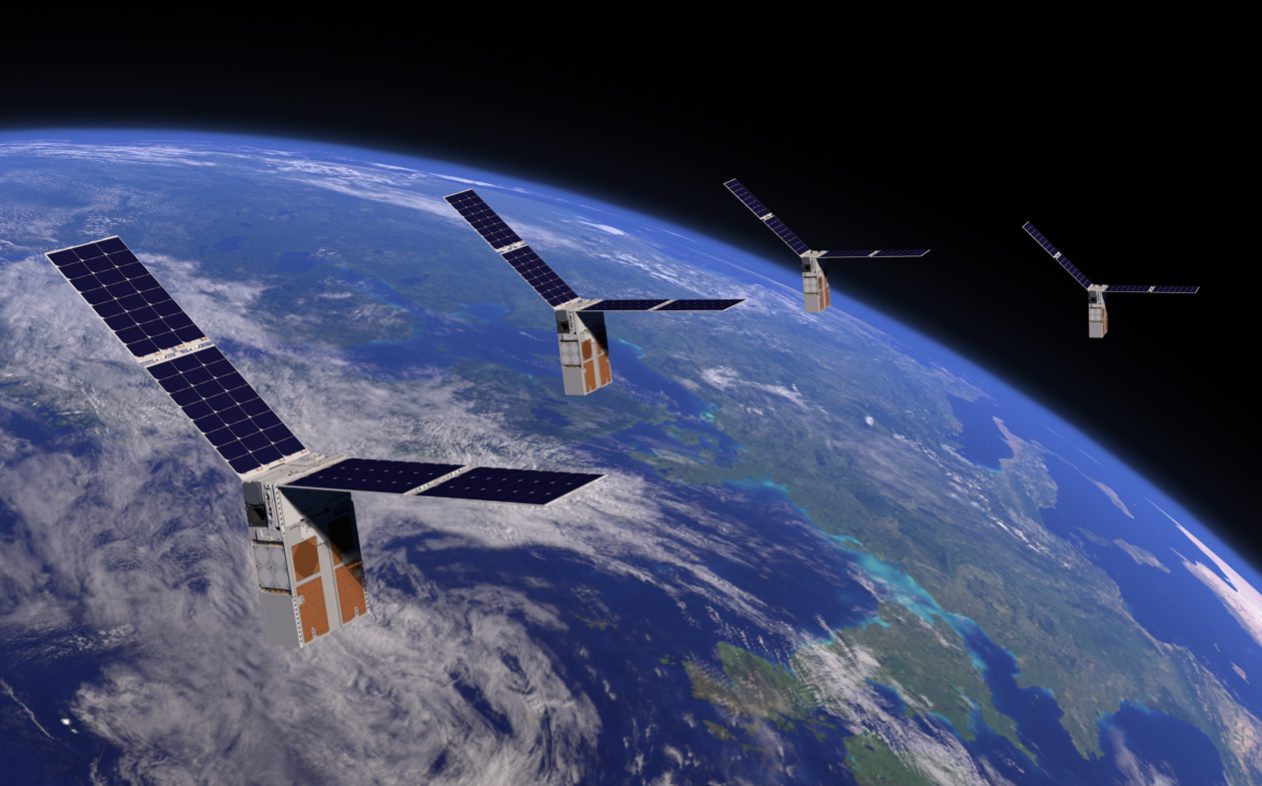

NASA Starling satellite formation mission — **NASA Starling** — a satellite formation mission running observation, formation, and an in-space MANET together (composite).

the simplex

The ternary simplex

Sense / Organize / Act are the three corners of a barycentric (ternary) simplex with coordinates (s, o, a), s + o + a = 1. A pure-corner mission lives at a vertex; real deployments rarely sit at a single corner. Most are composites — points in the interior of the simplex. We place a handful of widely-cited systems by their dominant deliverable; colour encodes the dominant family (blue Sense, green Organize, orange Act, purple composite).

Sense(I) Information Gathering

Organize(II) Collective Organization

Act(III) Action and Intervention

DARPA SubT NASA Starling NASA CADRE Kilobot TERMES SAGA

Sense Organize Act composite (interior)

Reading the interior: Kilobot sits close to the Organize corner for programmable self-assembly; SAGA sits close to the Act corner for allocated agricultural intervention; TERMES sits inboard of SAGA, with an additional Organize share carried by its stigmergic construction rules; DARPA SubT sits near the simplex centroid — a Sense-led mission that nonetheless demands a mesh-maintenance Organize layer and active mobility. Two composites sit firmly inside the simplex: NASA CADRE, just above Kilobot, where autonomous formation driving and a mesh among four lunar rovers (Organize) produce a cooperative subsurface radar map (Sense); and NASA Starling, near the Sense corner, which runs cooperative observation over formation maintenance and an in-space MANET together.

Approximate deliverable weights (s / o / a) for the photographed anchors: Kilobot (10 / 75 / 15), NASA CADRE (35 / 60 / 5), DARPA OFFSET (45 / 20 / 35), NASA Starling (45 / 45 / 10).

composites & strata

No fourth family — composites are interior points

Sense / Organize / Act are the three canonical families at the deliverable level. We deliberately do not introduce a fourth. Most deployments are composites — interior points of the simplex — and many can be read as special cases of one family inheriting structure from another:

Cooperative manipulation is Act with a tight Organize substrate (a held formation around the load).
Cooperative SLAM is Sense with an Organize substrate (a maintained communication graph that lets local maps fuse).
Precision agriculture is Act with a Sense substrate (the spray map drives the actuation plan).

The research interest is the coupling, not the mix. What matters about a composite is not that it blends families but how the families couple: the communication graph determines when sensing is usable, the formation determines what actuation is reachable, and a failure in one deliverable propagates into the others. NASA Starling and its 1.5 extension are a clean example — cooperative observation, formation maintenance, and an in-space MANET running together, with the MANET topology gating when sensing data can be used and manoeuvre budgets reshaping both.

Properties such as adversarial robustness, fault tolerance, and real-time guarantees are likewise not separate families but strata across I–III: any of the three families can be required to deliver under attack, faults, or deadlines. The taxonomy classifies the deliverable; the deployment specifies which strata it must hold up under. We treat the three families as a scaffold rather than a fixed classification — missions that don't fit cleanly push the families to evolve, not the other way around.

scope

Scope — the adversarial stratum

Our contributions address the adversarial stratum across all three families — nominally cooperative Sense, Organize, and Act missions in which one or more internal agents pursue misaligned objectives. Composite deployments such as Starling are the practical target.

This is the bridge to the project's governing research question: how covert, within-bounds micro-level misbehaviour propagates to macro-level mission failure, and how resilient the mission is. The mission taxonomy supplies the substrate; the adversarial stratum is the cross-cutting layer our work operates in. See the Literature page for the gap analysis and the Theory page for the resiliency formalism.

one reconciled view

Reconciling with the coupling taxonomy

An earlier draft (the Swarm-Resiliency work) organized missions by their coupling modality rather than their deliverable — what binds the agents together. The two cuts are not competitors: the deliverable a team produces and the coupling that produces it line up almost one-to-one. We present them here as one reconciled view: each deliverable family is delivered through a characteristic coupling, with a fourth coupling category (constraint-and-resource) attaching to the Act family's shared limits.

Deliverable family (this taxonomy)	Coupling category (Swarm-Resiliency)	What binds the agents
Sense — build/maintain a shared picture	A · Information-coupled	Agents share observations; the deliverable is reduced joint uncertainty.
Organize — form/hold structure & connectivity	B · Topology-coupled	Agents are bound by the interaction graph / formation they must hold.
Sense (composite substrate) — fused estimate	C · Fusion-coupled	Local estimates are merged into a shared belief; one bad input corrupts the fusion.
Act — effect change on the world	D · Constraint-and-resource-coupled	Agents share capacity, energy, workspace, and safety limits while dividing work.

The mapping. Sense ~ A (information-coupled), Organize ~ B (topology-coupled), Fusion-coupled C is the coupling glue of Sense composites — the mechanism by which a maintained graph (B) lets local maps fuse into a shared picture (A) — and Act ~ D (constraint-and-resource-coupled). The coupling taxonomy is, in effect, the mechanism view of the same three deliverable families, with C naming the seam where Sense and Organize meet in composites. This is exactly why the adversarial stratum is interesting: each coupling is also an attack surface — shared observations (A) can be poisoned, the topology (B) can be cut, fusion (C) can be biased, and shared constraints (D) can be exhausted.

references

References

R. Bajcsy. Active Perception. Proceedings of the IEEE, 76(8):966–1005, 1988.
B. J. Julian, M. Angermann, M. Schwager, D. Rus. Distributed Robotic Sensor Networks: An Information-Theoretic Approach. The International Journal of Robotics Research, 31(10):1134–1154, 2012.
B. Charrow, V. Kumar, N. Michael. Approximate Representations for Multi-Robot Control Policies that Maximize Mutual Information. Robotics: Science and Systems (RSS), 2014.
P. Schmuck, M. Chli. CCM-SLAM: Robust and Efficient Centralized Collaborative Monocular SLAM for Robotic Teams. Journal of Field Robotics, 36(4):763–781, 2019.
DARPA. Subterranean (SubT) Challenge. darpa.mil, 2018. Accessed 2026.
M. Mesbahi, M. Egerstedt. Graph Theoretic Methods in Multiagent Networks. Princeton University Press, 2010.
M. M. Zavlanos, M. B. Egerstedt, G. J. Pappas. Graph-Theoretic Connectivity Control of Mobile Robot Networks. Proceedings of the IEEE, 99(9):1525–1540, 2011.
R. Olfati-Saber, J. A. Fax, R. M. Murray. Consensus and Cooperation in Networked Multi-Agent Systems. Proceedings of the IEEE, 95(1):215–233, 2007.
M. Rubenstein, A. Cornejo, R. Nagpal. Programmable Self-Assembly in a Thousand-Robot Swarm. Science, 345(6198):795–799, 2014.
NASA JPL. CADRE — Cooperative Autonomous Distributed Robotic Exploration. jpl.nasa.gov, 2024. Accessed 2026.
B. P. Gerkey, M. J. Matarić. A Formal Analysis and Taxonomy of Task Allocation in Multi-Robot Systems. The International Journal of Robotics Research, 23(9):939–954, 2004.
J. Werfel, K. Petersen, R. Nagpal. Designing Collective Behavior in a Termite-Inspired Robot Construction Team. Science, 343(6172):754–758, 2014.
E. Tuci, M. H. M. Alkilabi, O. Akanyeti. Cooperative Object Transport in Multi-Robot Systems: A Review of the State-of-the-Art. Frontiers in Robotics and AI, 5, 2018.
Institute of Cognitive Sciences and Technologies, CNR. SAGA — Swarm Robotics for Agricultural Applications. laral.istc.cnr.it/saga, 2016. Accessed 2026.
NASA. Starling Mission. nasa.gov, 2023. Accessed 2026.
DARPA. OFFensive Swarm-Enabled Tactics (OFFSET). darpa.mil, 2017. Accessed 2026.
